Mobile Concrete Mixer With Pump Factory

When installing the mobile concrete mixer with pump, the user needs to consider the source of the concrete. If it is commercial concrete, the mixer truck can feed the pump, and the pump can be installed on-site, as long as it is convenient to feed and take over. If you are mixing concrete on site, you need to determine the location of the mixer according to the feeding method and site of the mixer. Then determine the location of the concrete pump according to the discharge height of the mixer and the requirements of suitable pumping and takeover. For the situation of on-site mixing, the introduction by mobile concrete mixer with pump factory is as follows:

mobile concrete mixer with pump factory

1. Placement requirements

Before installing the concrete pump, first place the concrete pump on a relatively solid cement floor or stone pier, and make sure that the concrete pump is kept level. At the same time, the four outrigger positioning pins and safety pins of the pump can be locked to make the tire off the ground or remove the tire.

2. Installation of hopper

Under normal circumstances, the hopper of the pump needs to be increased by about 20cm, which can effectively increase the volume of the hopper and ensure that the concrete does not flow out. It should be noted that the unloading of the forced mixer should be done at one time as much as possible, so that the concrete flowing into the hopper will be more uniform. If discharging is carried out in batches, the final concrete stones will have more booms, which is quite unfavorable for pumping. Especially when the slump of concrete is large, it is more noteworthy. Therefore, the hopper of the pump must be raised at this time. If it is a large-capacity mixer, a storage hopper can be made in advance to ensure continuous feeding.

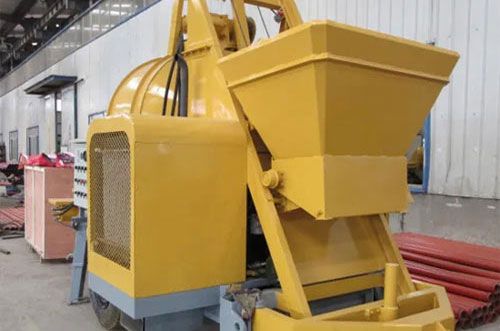

mobile concrete mixer with pump

3. Installation of chute

According to the discharge port of the js1000 concrete mixer and the pump hopper as a chute, the material discharged from the mixer enters the hopper of the pump through the chute. It should be pointed out that the chute is usually made of angle steel and welded by 1.5mm thick steel plate. The following is usually erected with a support, the purpose is to make it firm.

4. Overall requirements

Generally, when placing the chute, the slope must be appropriately required. It is recommended that the inclination angle be as far as possible between 25°-40°, and the drop should not be too large. In addition, when the chute is connected to the hopper of mobile concrete mixer with pump, a certain space should be left between the chute and the hopper to facilitate cleaning of the hopper and screen. After the concrete pump is installed as a whole, observe the overall situation to ensure that the cover door of the pump can be opened and closed freely for easy maintenance and operation.

At present, mobile concrete mixer with pumps have been widely used in various construction fields, and the correct installation of concrete pumps can make it play a greater role.
