YHZS60 Mobile Concrete Batching Plant

YHZS60 mobile concrete batching plant manufacturers provide hot sale high quality YHZS60 mobile concrete batching plant with factory price.

Productivity: 60m3/h
Overall Power: About 85kw
Discharge Height: 3.8m
Power Source: 380/50 (V/ HZ)

Online Chat Inquiry

Description of YHZS60 Mobile Concrete Mixing Plant

1. YHZS60 mobile concrete mixing station is easy to install on site. The mixing station integrates mixer, batching system, operation system, feeding system, weighing system, cement silo, screw conveyor and all supporting equipment in one.

2. The YHZS series mobile concrete mixing station produced by our company can be directly sent to the construction site under the transportation conditions, and can be quickly installed on site, and can be put into operation without commissioning.

3. The high quality mobile concrete mixing station has the characteristics of accurate weighing, uniform mixing, high mixing efficiency, fast transportation, clean transportation, convenient mobile operation and traction safety by absorbing domestic and foreign new technologies.

Features of YHZS60 Mobile Concrete Mixing Plant

1. Less maintenance and operating costs

2. Reduce transportation costs

3. Compact design

4. Easy and fast installation of mobile concrete mixing station

5. Reduce concrete transportation costs.

6. Less basic cost

7. Hot sale mobile concrete mixing station installation does not require local authorization

YHZS60 Mobile Concrete Batching Plant

1. The YHZS60 mobile concrete mixing station with factory price uses a chassis with wheels to facilitate the movement from one location to another.

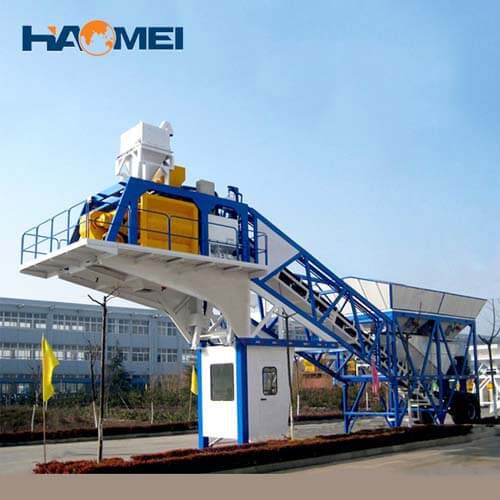

YHZS60 mobile concrete batching plant factory

2. Adopt belt conveyor system, which can greatly increase the conveying speed and improve the efficiency of high quality yhzs60 mobile concrete mixing station.

3. The JS1000 double-shaft forced concrete mixer not only improves production efficiency, but also saves construction time.

4. The main weighing system was introduced from abroad. High accuracy and high efficiency have become a big advantage of YHZS60 mobile concrete mixing station.

How to strengthen the management of mobile concrete mixing station

1. Strengthen the quality control of mobile concrete

When working at the mobile concrete mixing station from manufacturers, the quality control of the concrete is related to the quality of the entire concrete mixing station. A strict concrete random inspection system is established, and at least twice in each shift. According to the mix ratio of each strength grade concrete, make concrete test blocks in advance, check the actual strength of the mix ratio of each strength grade concrete, and make and maintain concrete test blocks according to the requirements of the specification in the subsequent concrete pouring process.

2. Strengthen equipment maintenance

In order to ensure the normal operation of the hot sale mobile concrete mixing station from factory, a special maintenance system must be established. Various types of machinery are inspected once a day and problems are found to be resolved in time. An electromechanical group can be set up at the site of the mobile concrete mixing station to timely repair and deal with various mechanical failures. The electromechanical group adopts the system of the electrical engineer to handle various mechanical failures of the mixing station.

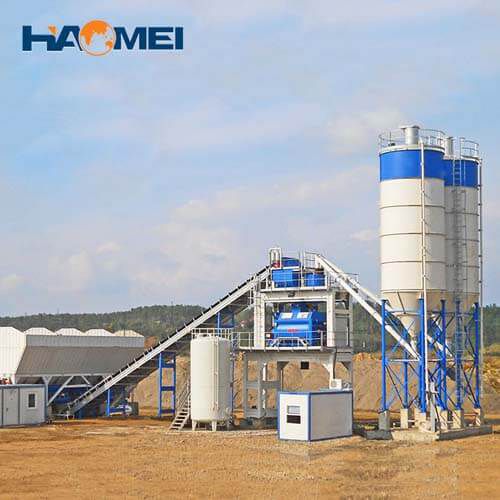

YHZS60 mobile concrete batching plant manufacturers

3. Strengthen technical training for operators

After the mobile concrete mixing station is completed, the maintenance and technical safety management of various machinery should be strengthened. The operation of the machine is a professional technical work, safe use and operation, and strictly implement the operation manual and other relevant regulations. At the same time, special operating points are developed according to the operating manual. Operators must be specially trained to work independently.

With the increasing application of mobile concrete mixing station equipment with factory price, customers are concerned about maximizing efficiency in the operation of mobile concrete mixing stations. Therefore, only by improving the working efficiency of the mobile concrete mixing station can the efficiency be maximized. There is no doubt that the cost of labor, time, and raw materials will be reduced accordingly.

What are the advantages of mobile mixing stations

1. The structure of the mobile mixing station is compact, in the towing unit concentrated on the concrete production of almost all the process.

2. Humanized man-machine operation interface, reliable performance, stable operation under various harsh environments.

3. Mobile mixing station with double horizontal shaft forced mixer, continuous running ability, stirring track is comprehensive, stirring movement is strong, stirring fast and uniform.

4. The complete equipment of the mobile mixing station can be quickly transported to the construction site and assembled on site through the full hanging form, and the construction can be carried out without debugging.

5. High degree of automation, strong maneuvering performance, simple operation and good stability.

6. Solid structure, compact and reasonable space layout, ensuring flexibility and production capacity.

7. The movable mixing station occupies a very small area and is convenient for transfer, which greatly reduces the amount of basic works.

mobile concrete mixing plant manufacturers say, The mixing power from the operating time of the mobile concrete mixing plant can be understood from the point of view of the mixing torque level, the water content in each granular mixture. Wetting particles in the first stage, and subsequent power consumption increases. After that, the power consumption stabilizes at the plateau and then increases further in the fourth stage. In the final stage, the power consumption drops the mass into a suspension.

SpecificationUnitValue
Productivitym3/h60

Weighing scale Concrete

kg3000

Weighing scale Cement

kg720

Weighing Scale Water

kg360

Weighing Scale Liquid Additive

kg36

Overall Power

kwAbout 85

Power Source

V/ HZ

380/50

Discharge Height

m3.8

Overall Weight

t21(cement silo not included)

Trail speed

km/h

≤40

Specification(LxWxH) During work

m

17x3.6x8.2

During transportation

m

17.6x2.4x4.35

Production Case



YHZS60 Mobile Concrete Batching Plant Was Shipped To Saudi Arabia

The growing demand for mobile concrete mixing plants and mixers in Saudi Arabia may be due to the accelerated development of infrastructure development in Saudi Arabia. On January 10, Haomei sold a set of YHZS60 Mobile Concrete Batching Plant to customers

Read More
